Special Air Conditioning System for Cool Drug Storage
VSD-Y

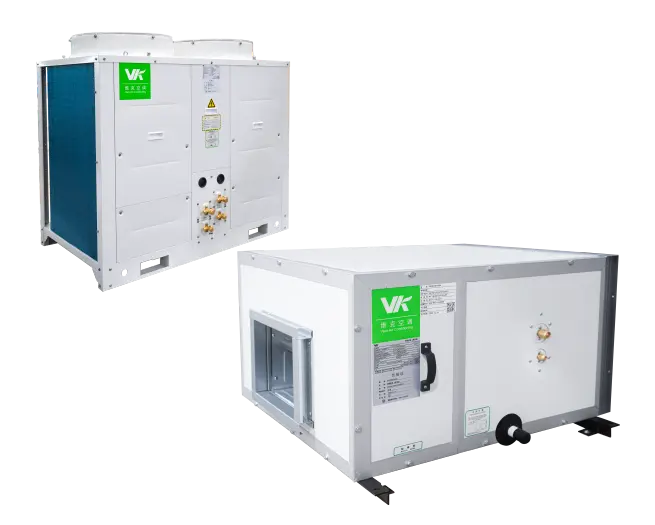

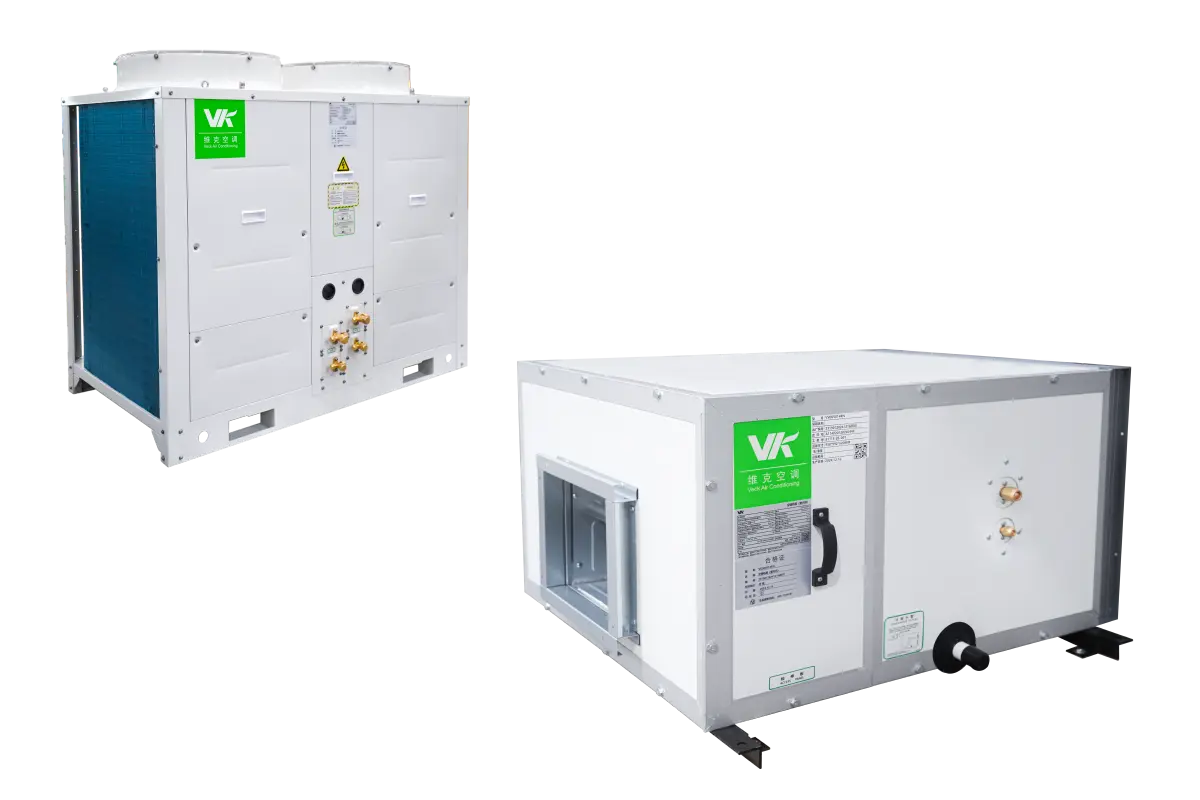

Special Air Conditioning System for Cool Drug Storage
The inner and outer box panels of Veck's air handling units are flat. All inner corners are automatically extruded during assembly to form inner arcs, which makes it difficult for dust to accumulate and there is no secondary pollution. It can meet the requirements of high-standard industries such as purification. According to the characteristics of the pharmaceutical cool storage, the unit can be selected in the form of duct type and remote jet nozzle. It can be flexibly applied according to the size of the space to meet the air supply form requirements of different cool storages.
Air Volume Range
5000~13500
m³/h
Cooling Capacity Range
19.7~52.5
kW
Product Features
-
Customized DesignThe operating conditions are specially customized for the characteristics of the cool storage, precisely meeting the special requirements such as temperature, humidity and spatial layout of the cool storage, ensuring the efficient and stable operation of the unit in the environment of the cool storage. -
Diverse Air Supply FormsIt provides various air supply forms such as the duct type and the remote jet nozzle type. It can be flexibly selected according to factors such as the arrangement of goods and the size of the space in the cool storage, achieving precise air supply and ensuring the uniform distribution of temperature in the storage. -
High-quality Insulation MaterialHigh-density polyurethane insulation filling material with a low thermal conductivity is used, effectively reducing the loss of cooling capacity, reducing energy consumption and extending the service life of the unit. -
Good Sealing PerformanceThe forced sealing structure of the composite profile with concave-convex groove snap-in forced sealing frame enhances the overall sealing performance of the unit and reduces the air leakage rate of the unit.
