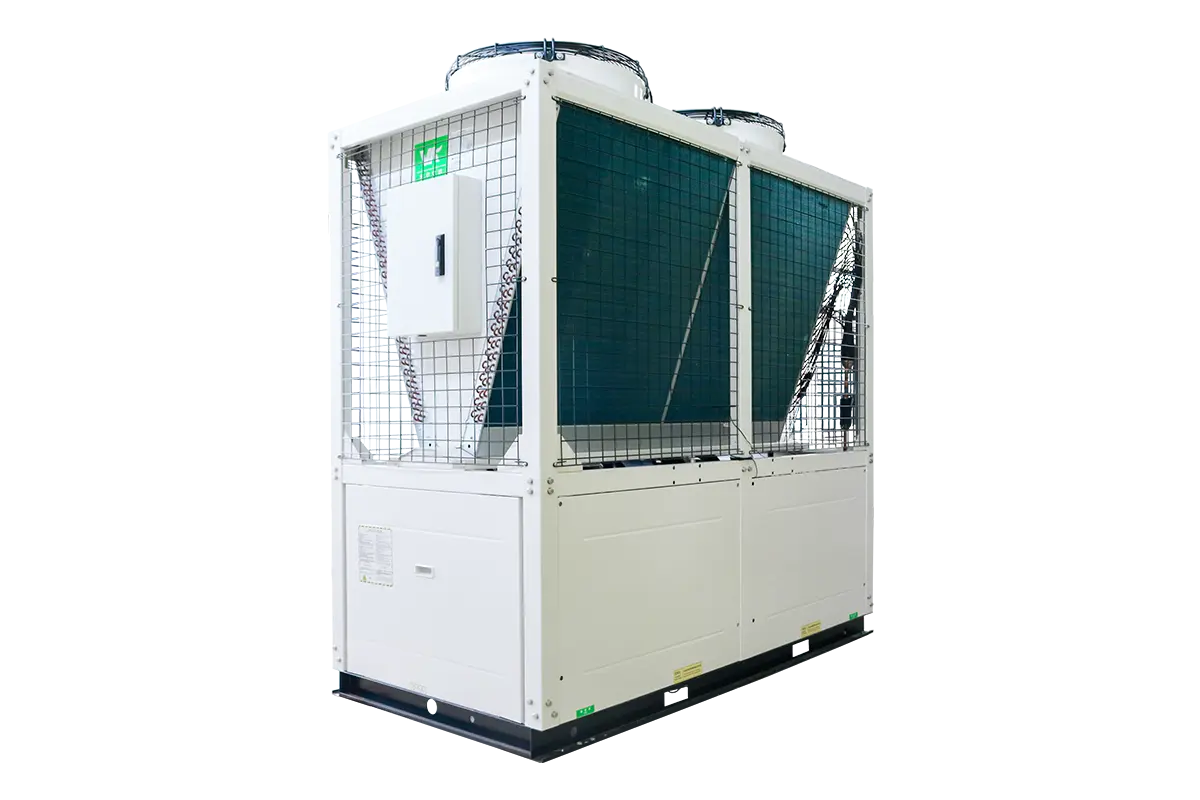

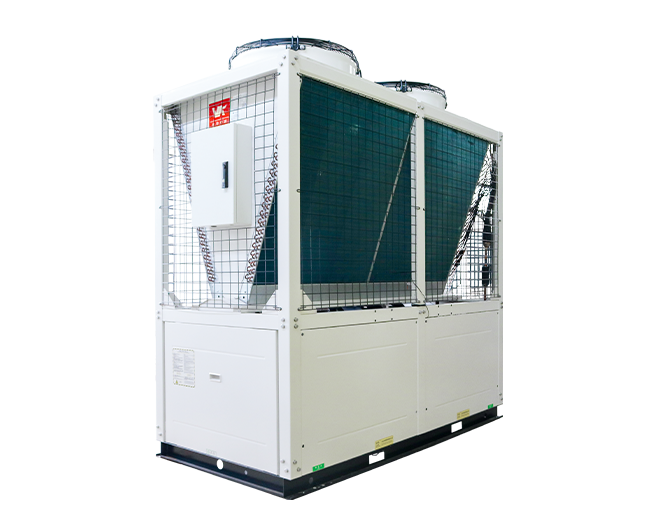

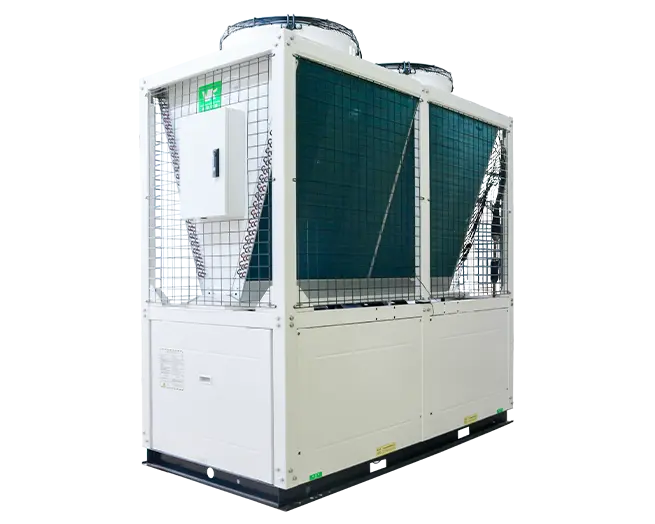

Tri - Functions Air - Source Air Conditioner (low temperature application)
VAXH-EH
VAXH-EH
Tri - Functions Air - Source Air Conditioner (low temperature application)
The key components of the unit are from internationally renowned brands, ensuring stable quality; the triple supply unit can provide cooling, heating, and domestic hot water; the hot water system is easy to control and operates economically and reliably; 5 independent operating modes, 2 hot water pump control schemes, meeting the needs of various users; the unit is designed for 2 different climate conditions, ensuring energy-efficient and reliable operation.
Nominal Cooling Capacity (35℃ Ambient/7℃ Outlet)
32.5/65
kW
Rated Heating Capacity (7℃ Ambient/45℃ Outlet)
36/72
kW
Nominal Heating Capacity (-12℃ Ambient/41℃ Outlet)
22.8/45.9
kW
Nominal Hot Water Capacity (20℃ Ambient/15℃ Inlet, 55℃ Outlet Circulating Heating)
42/84
kW
Product Features
-
Design and StructureModular design allows for flexible combination of units, with centralized control by microcomputer for flexible cooling capacity adjustment and energy saving. -
Function and Operating Modes5 basic operating modes: cooling, heating, hot water, cooling + hot water, heating + hot water, widely applicable in hotels, offices, schools, factories, villas, etc. Stable operation in ultra-low temperature environments, with outlet temperature reaching above 45℃, achieving efficient heating. -
Core Components and TechnologyUses internationally renowned brand's fully enclosed scroll compressors, ensuring outlet temperature and wide operating range in low ambient temperatures. Liquid injection cooling technology effectively addresses the shortcomings of unit operation in low-temperature environments, improving system outlet temperature and unit reliability. Uses R410A eco-friendly refrigerant, more environmentally friendly. -
Heat Exchanger and FanAxial fans use low-noise energy-saving fans, matched with high-efficiency custom motors, high protection level, capable of handling harsh weather. Both air-conditioning water-side heat exchangers and hot water water-side heat exchangers are optimized for improved heat exchange performance, ensuring smooth and uniform water flow.
