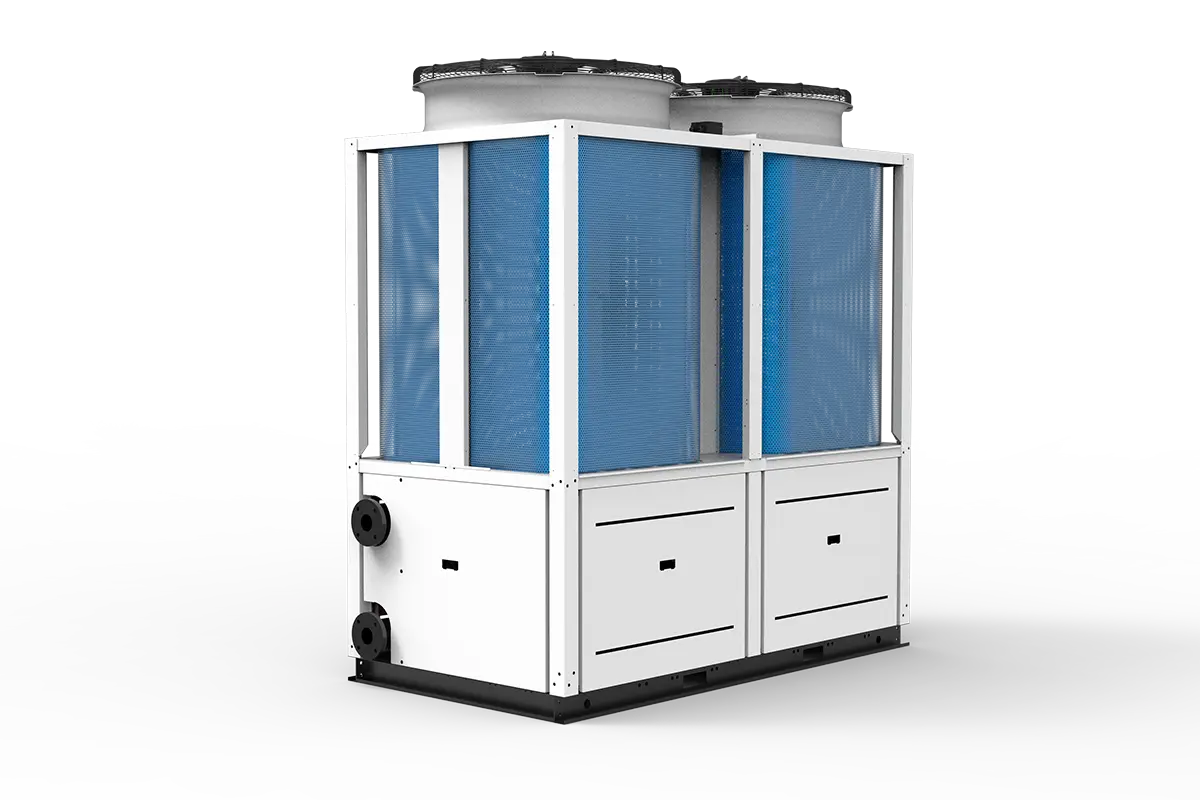

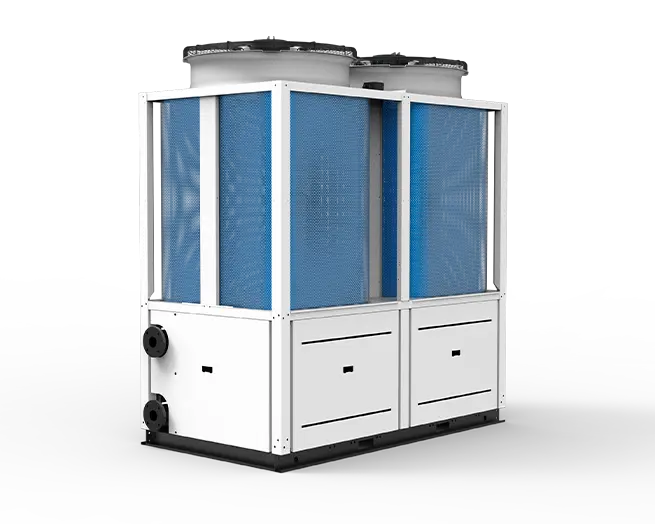

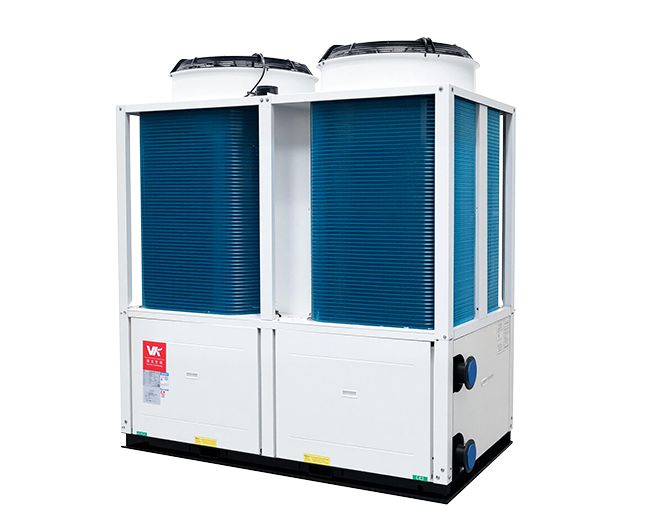

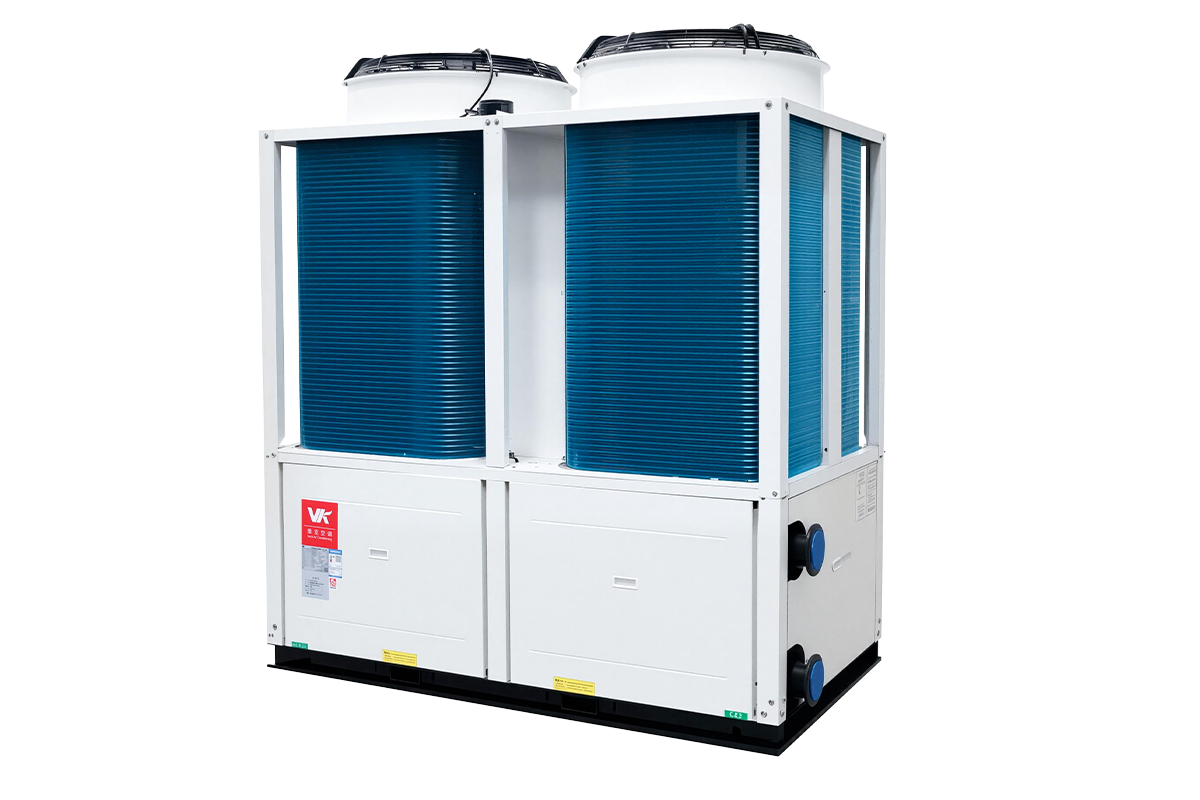

Air-source Heat pump (Low Temperature Application) (U-type)
VAXH-G
VAXH-G
Air-source Heat pump (Low Temperature Application) (U-type)
Veck's new-generation ultra-low temperature heating modular unit, the VAXH-G ultra-low temperature series, is a product launched for heating users. The unit adopts cutting-edge Japanese low-temperature heat pump technology, intelligent microcomputer control, a novel appearance and structural design, and modular assembly combinations, comprehensively meeting the needs of different users in terms of energy conservation and environmental protection, safety and reliability, quietness and comfort.
Nominal heating capacity (-12℃ Ambient/50℃ Outlet)
103.1/109.7
kW
Nominal heating capacity (-12℃ Ambient/41℃ Outlet))
102/108
kW
Rated heating capacity (7℃ Ambient/45℃ Outlet)
155/170
kW
Nominal cooling capacity (35℃ Ambient/7℃ Outlet)
142/155
kW
Product Features
-
Wide operating rangeCan operate safely and stably in outdoor environments ranging from -36℃ to 48℃, meeting the heating needs of most regions across the country -
High efficiency and energy savingUses R410A refrigerant, which is more environmentally friendly; high operating efficiency, can easily heat even in -36℃ environment, heating PLV meets the national first-level energy efficiency standard -
Modular designNo main or auxiliary distinction, can be combined in 1-16 units to meet the load requirements of different occasions; each module is equipped with a water flow switch for safer operation. -
Intelligent controlBuilt-in multiple protection functions, such as compressor anti-frequent start, over-pressure protection, motor wind overload protection, etc.; standard wireless function, can be remotely controlled via mobile App
