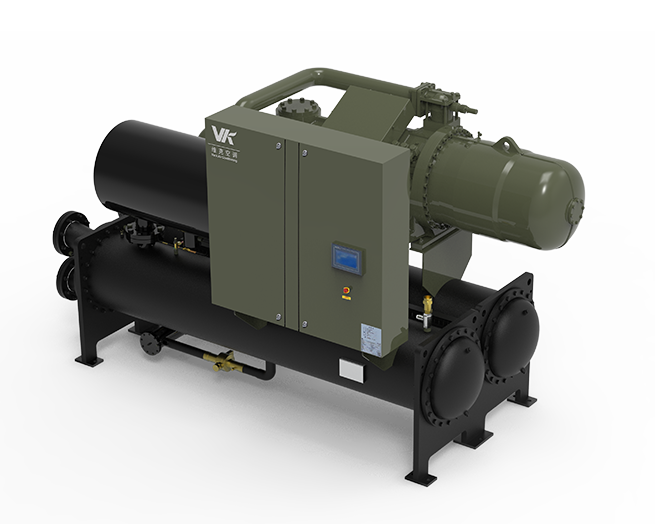

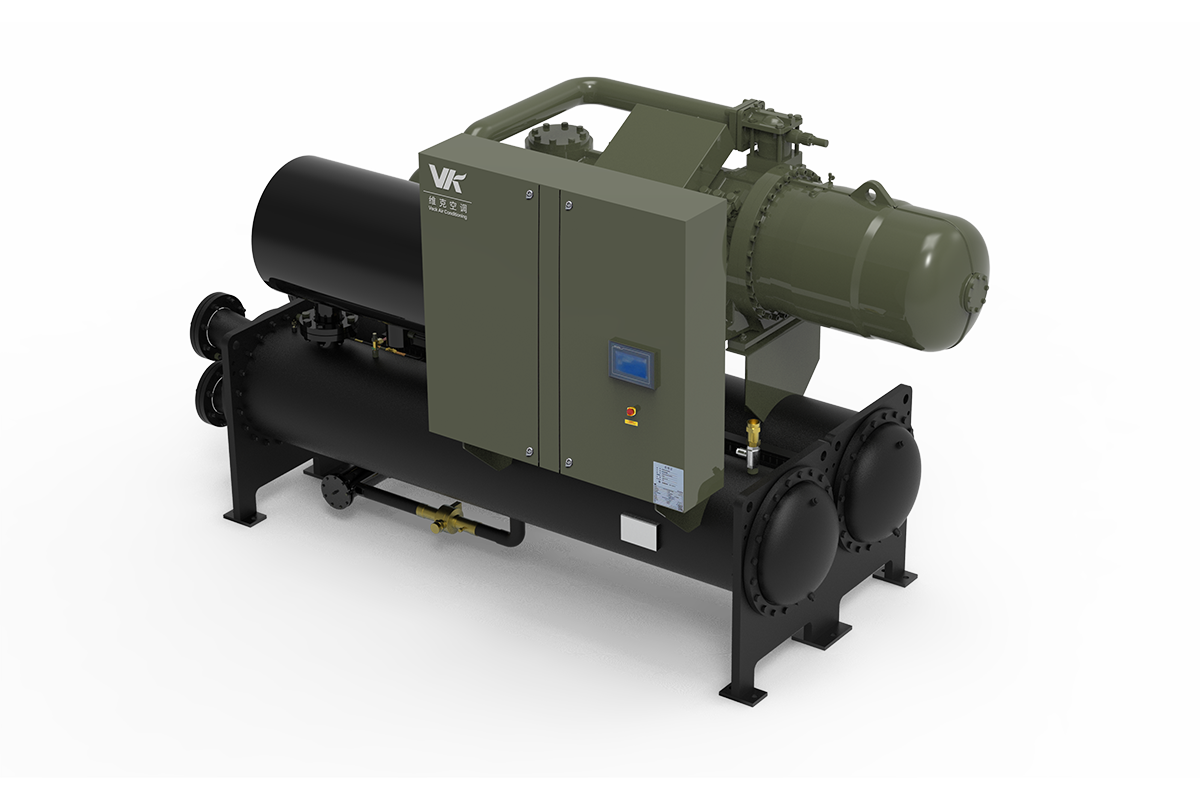

Water (Ground) Source Heat Pump (Flooded Type)
Water (Ground) Source Heat Pump (Flooded Type)
It adopts multiple technologies such as three-stage oil separation and fine filtration, making the unit more stable. With an optimized system design and a flooded evaporator structure, the unit has higher efficiency. An electronic expansion valve is used to meet the functional requirements under different loads, achieving the dual control requirements of flexibility and precision.
Cooling Capacity Range（VHSF-NWB；VHSF-NGB）：
395~1962；390~1936
kW
Heating Capacity Range（VHSF-NWB；VHSF-NGB）：
404~1989；397~1957
kW
Product Features
-
Renowned brand compressorsIt adopts compressors of internationally renowned brands, high - efficiency and large - capacity motors, and high - efficiency heat - exchange tubes, which are combined with a patented pipe - layout structure (Patent No. ZL 2023 2 2662925.X). -
PID regulationIt has the functions of PID - regulated load variation, temperature - control accuracy of ±0.5℃, and an electronic expansion valve to ensure precise control accuracy. -
Compact structure with convenient installationIt features a compact structure and convenient installation. The maximum water - outlet temperature can reach 60℃. It is equipped with a three - stage oil - return system and a high - efficiency independent external oil separator, with an oil - separation efficiency of 99.9%. -
Robust protection functionsIt has multiple complete protection functions to ensure the safe and stable operation of the unit. Meanwhile, it has rich additional functions, which can expand the application fields.
